Guide Infrared TRACKIR 35
-
£1,650.00 Inc VAT!
- Product Code: GUI-TRACKIR-35
- Availability: In Stock
- VAT Included
- Delivery just £6 or FREE for orders over £100
Product Description

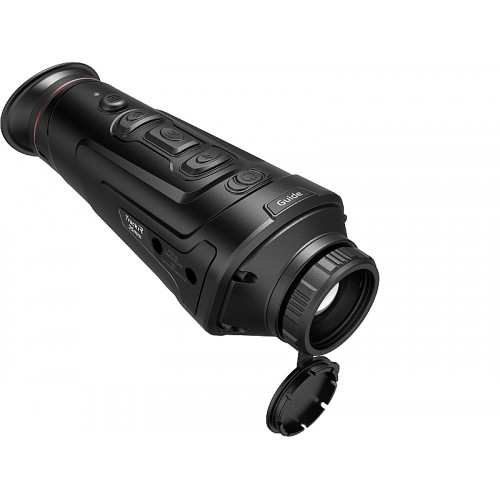

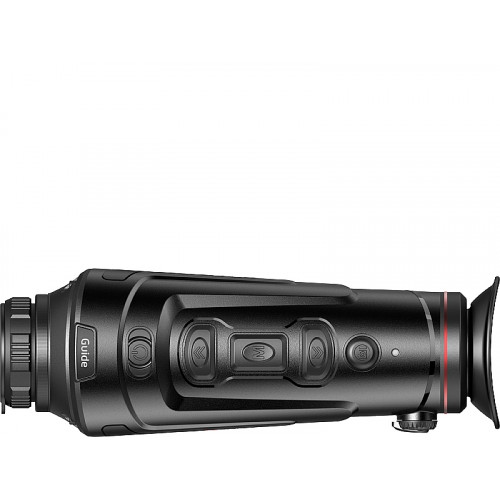

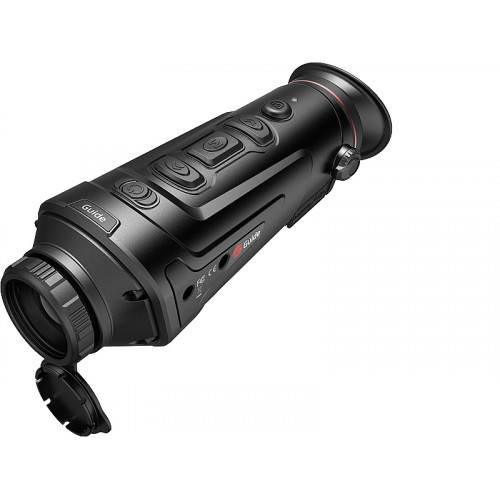

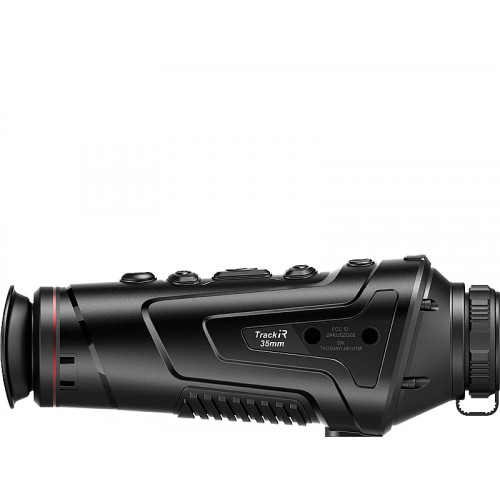

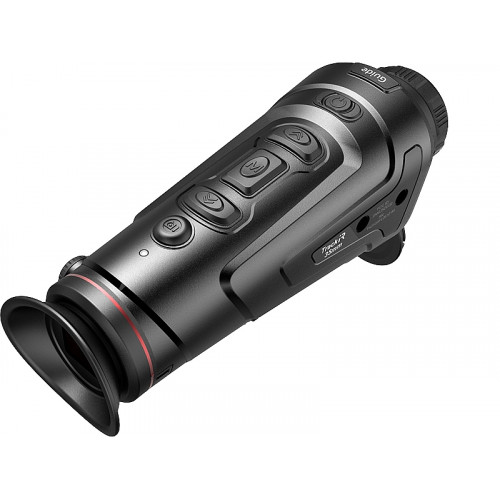

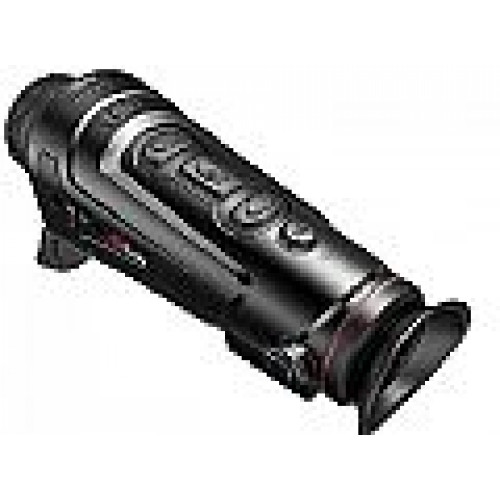

The TrackIR Series of thermal imaging monocular features a 400x300 17µm <50mK NETD thermal sensor & image enhancement for performance imaging combined with a 50Hz refresh rate and a 1280x960 HD LCOS display resulting in a smooth & crisp viewing experience. The TrackIR 35 has a native magnification of 2.3x, with a digital zoom of 4x, resulting in a 9.2x total magnification which alongside the units long distance detection (Humans: 1000m, Vehicles: 2400m) makes this unit perfect as a thermal spotter.
Features a built-in stadiametric rangefinder for measuring the distance of known objects as well as Picture-in-Picture (PiP) mode which adds a zoomed-in display-box within the main viewfinder, this allows the user to hone-in on their subject whilst maintaining full awareness of the wider field of view.
The unit has an internal Li-Ion battery pack with an operating time of up to 5 hours and can be recharged via USB Cable.
The TrackIR Series can also connect to a smartphone via a dedicated App, this allows the unit to be operated remotely, share captured photos & videos as well as be live viewed.
Specifications
Thermal Sensor: 400x300 17µm <50mK NETD
Spectral Range: 8µm-14µm
Detection Range: 1000m (Human: 1.8mx0.5m), 2400m (Vehicle: 2.3mx2.3m)
Magnification: 2.3x-9.2x
Digital Zoom: 1x-4x (Smooth)
Focus: 35mm/F1.2 (Manual)
Field of View: 11.1°x8.3°
Display: 1280x960 (0.4") LCOS Colour
Dioptre: -4 to +2
Frame Rate: 50Hz
Colour Palettes: White hot, black hot, iron red, blue hot, red hot
Scene Modes: Enhanced, Highlight, Natural
Picture-in-Picture Mode: Yes
Power: Internal Li-Ion (2x18650 6000mAh)
Operating Time: >5h
Ports: Micro-USB-C, Video Out
Internal Memory: 16GB
Operating Temperature: -10℃ to 50℃
Protection: IP66
Drop Rating: 1m
Weight: 485g
Dimensions: 192x65x71mm
Additional Functions
Photo & Video Capture
Hotspot Tracking
Stadiametric Rangefinder
Wi-Fi/ App
Compensation Modes: Auto comp./ shutter comp./ scene comp.
Indicate Box: Red, yellow, green (coordinates of the indicator box are adjustable)
Image Enhancement
Brightness & contrast
Auto power-off
Auto sleep
Super power-save mode
Indicator off
Includes
Thermal Imager
USB Cable
Micro HDMI Cable
Lens Cover
Wrist Strap
Lining Package
Quick Start Guide
Model | Product Code | Thermal Sensor | Frame Rate | Magnification (Digital Zoom) | F.O.V | Detection Range* | View Finder | Dimensions |
---|---|---|---|---|---|---|---|---|
TRACKIR 25 | GUI-TRACKIR-25 | 400x300 17µm <50mK | 50Hz | 1.7x-6.8x (4.0x) | 15.4°x11.6° | 700m | 1280x960 LCOS | 192x65x71mm |
TRACKIR 35 | GUI-TRACKIR-35 | 400x300 17µm <50mK | 50Hz | 2.3x-9.2x (4.0x) | 11.1°x8.3° | 1000m | 1280x960 LCOS | 192x65x71mm |
TRACKIR 50 | GUI-TRACKIR-50 | 400x300 17µm <50mK | 50Hz | 3.3x-13.2x (4.0x) | 7.8°x5.8° | 1400m | 1280x960 LCOS | 114x65x71mm |
TRACKIR PRO 19 | GUI-TRACKIR-PRO-19 | 640x480 12µm <50mK | 50Hz | 1.1x-8.8x (8.0x) | 22.9°x17.2° | 800m | 1280x960 LCOS | 192x65x71mm |
TRACKIR PRO 25 | GUI-TRACKIR-PRO-25 | 640x480 12µm <50mK | 50Hz | 1.5x-12.0x (8.0x) | 17.5°x13.1° | 1000m | 1280x960 LCOS | 192x65x71mm |
TRACKIR PRO 35 | GUI-TRACKIR-PRO-35 | 640x480 12µm <50mK | 50Hz | 2.0x-16.0x (8.0x) | 12.5°x9.4° | 1400m | 1280x960 LCOS | 214x65x71mm |
*Man Sized Objects
